| C.E. safety norms |
|

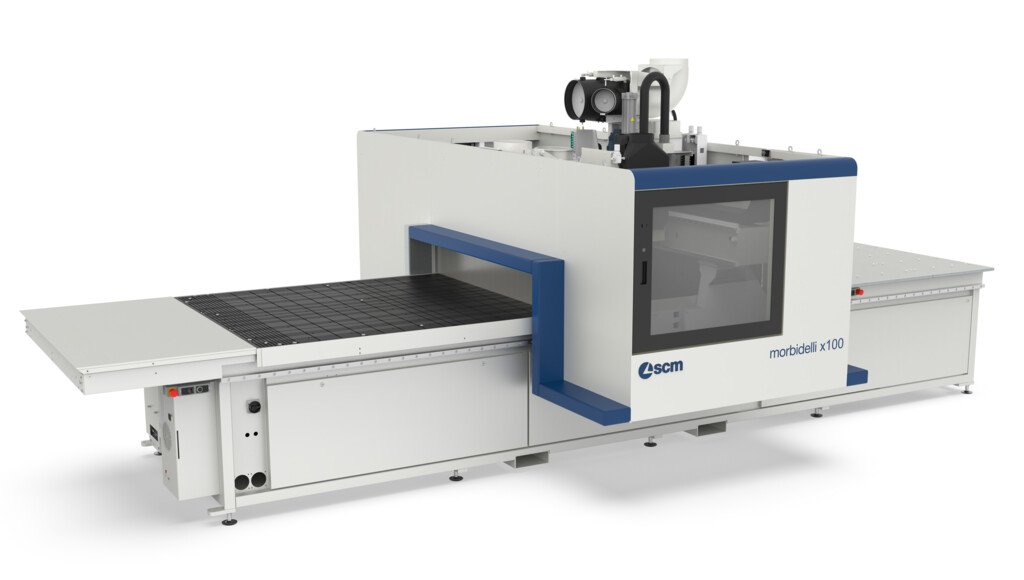

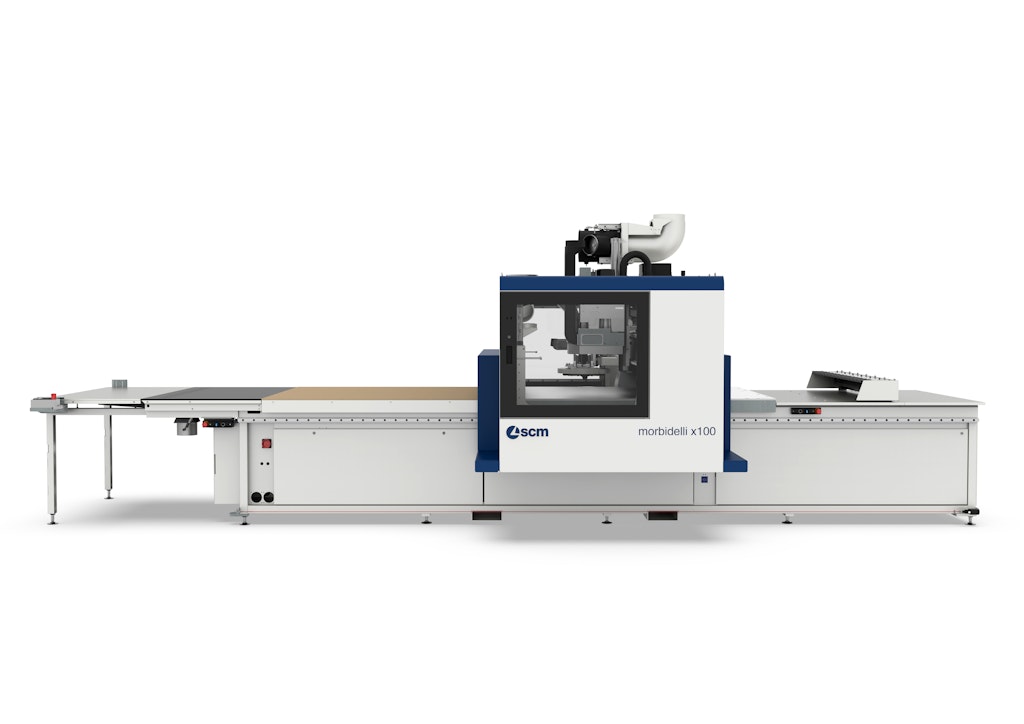

| morbidelli X100 BELT – 2243 (7’ x 14’) |
|
| Volt |
400 EU |
| Frequency |
50 Hz |
| PRO-SPACE safety system |
|
| TECPAD Wired Remote Control with 7" Touch-Screen Colour Display |
|
| Air blower on electrospindle |
|
| RO.AX F20LLR Drilling head |
|
| 3-Axis Electrospindle – 9.5kW (13HP) – 24,000rpm |
|
| TRB19 Linear Tool Changer for 22xx (7’ x 10’, 7’ x 14’) |
|
| Phenolic High Efficiency (PHE) multifunction phenolic worktable |
|
| Automatic centralised lubrication |
|
| Tool length detection device |
|
| MDF transpiring baseboard (suitable to be routed) |
|
| Work table divided in 8 vacuum areas (15xx, 18xx, 22xx) |
|
| Workpiece reference stops on the 4 corners of the work table |
|
| Cell pre-set |
|
| Working flow from right to left direction |
|
| ON-OFF workpieces outfeed pusher |
|
| Lower dust extraction grid between the work table and the outfeed conveyor |
|
| Unloading belt 2200x4390mm (2243) |
|
| Device for 3mm minimum panel thickness management |
|
| 500/600 m3/h 50/60 Hz high capacity vacuum |
|
| Maestro lab programming software |
|
| Hardware key for Maestro |
|
| Module for nesting free-form + Label for Maestro |
|
| Additional key for Maestro (USB port) |
|
| eye-M PRIME" mobile console |
|
| Cables length of the mobile control panel 6,5 meters |
|
| No.1 HSK 63 right tool-holder for expansible collets (ER32) |
|
| Wood blocks |
|
| Velocità vettoriale assi X-Y "PRO-SPACE" |
70 m/min |
| Passaggio pezzo in Z |
150 mm |
| Potenza motore 3-4 assi (fino a) |
15 (20,5) kW (hp) |
| Velocità di rotazione (fino a) |
24000 g/min |
| Utensili disponibili su magazzino (fino a) |
31 posti |
| Mandrini verticali indipendenti (fino a) |
16 n. |
| Mandrini orizzontali indipendenti (fino a) |
8 n. |
| Velocità di rotazione (fino a) |
8000 g/min |
| Lame integrate (fino a) |
2 n. |
| Lama integrata in X, diametro |
125 mm |
| Machine language |
ITALIAN |
